STAK Auto Lifts
4-Post Storage Lifts.
Drive on. Park underneath. Come back for it whenever. Five configurations to fit your ceiling, your vehicles, and your garage.
Drive on. Park underneath. Come back for it whenever. Five configurations to fit your ceiling, your vehicles, and your garage.

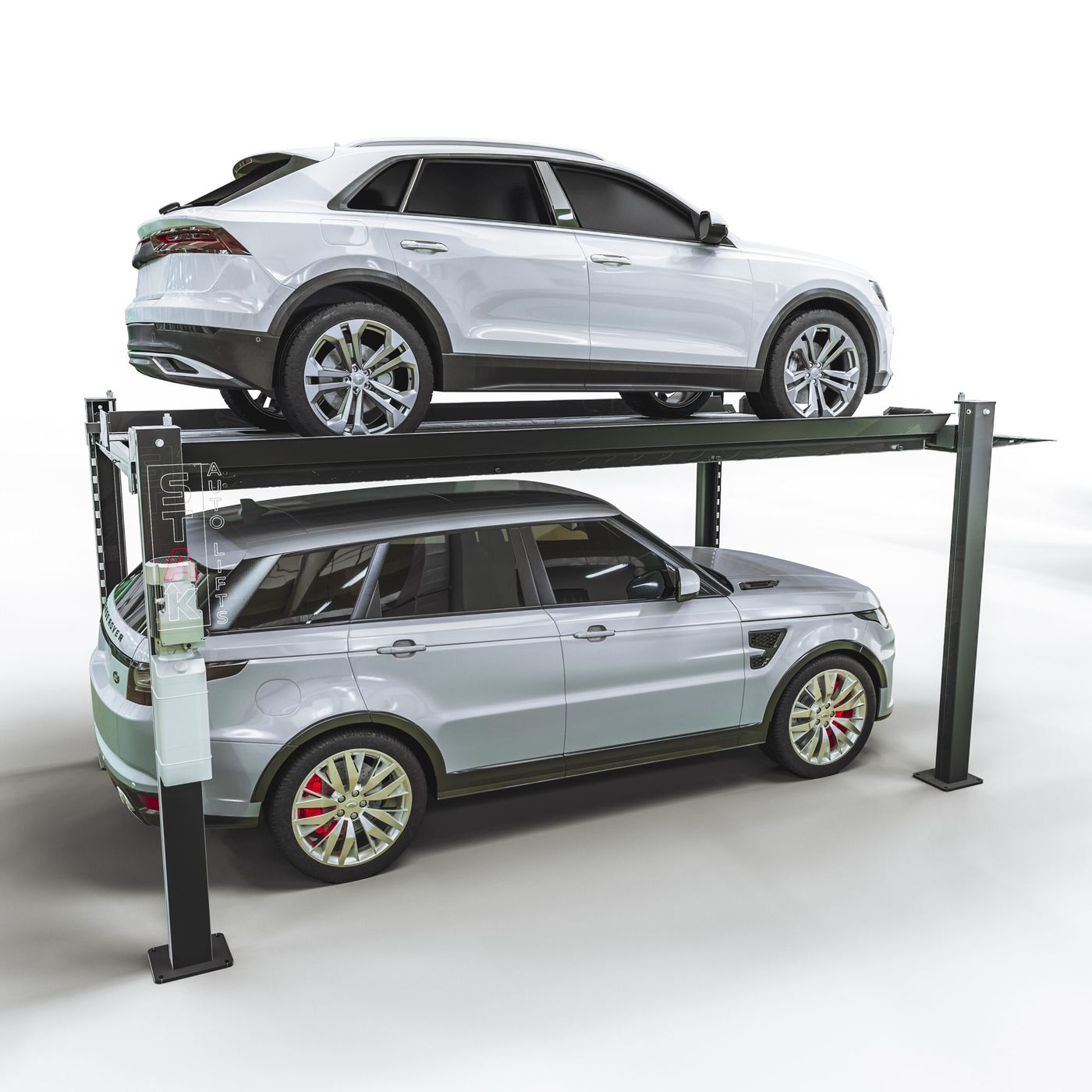

Most Popular
The workhorse — fits SUVs, trucks, and taller vehicles.
The most versatile 4-post in the STAK lineup. With 94" of interior width and a max vehicle height of 80.5", it handles full-size SUVs and taller trucks that won't fit a standard-width lift.
| Specification | Value |
|---|---|
| Max Vehicle Height | 80.5" (6'8½") |
| Max Vehicle Width | ≤ 94" |
| Min Ceiling Required | 138" (11'6") |
| Power | 120V single phase |
| Warranty | 5-yr parts / 1-yr labor |

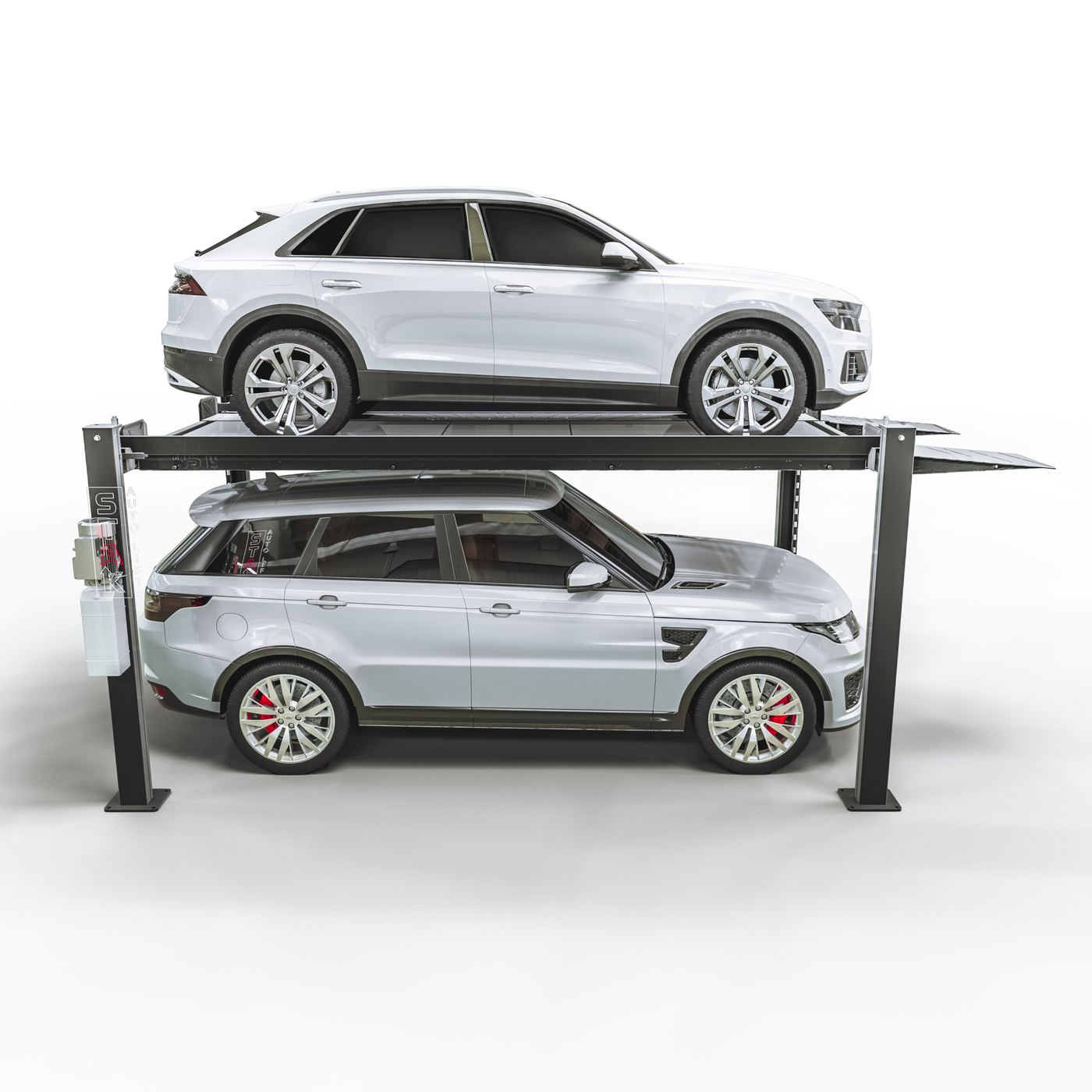

Low Ceiling
Wide vehicle clearance where ceiling height is limited.
Same wide-body clearance as the Tall Wide, but engineered for garages where ceiling height is the constraint. Fits in garages that top out around 10'5" — ideal for Houston's typical residential build.
| Specification | Value |
|---|---|
| Max Vehicle Height | 67.5" (5'7½") |
| Max Vehicle Width | ≤ 94" |
| Min Ceiling Required | 125" (10'5") |
| Power | 120V single phase |
| Warranty | 5-yr parts / 1-yr labor |
Standard Width
Taller vehicles, standard-width footprint.
Full height accommodation for sedans, crossovers, and standard-profile vehicles with an 87" interior width. The go-to when ceiling height isn't a concern but a narrower footprint is preferred.
| Specification | Value |
|---|---|
| Max Vehicle Height | 80.5" (6'8½") |
| Max Vehicle Width | ≤ 87" |
| Min Ceiling Required | 138" (11'6") |
| Power | 120V single phase |
| Warranty | 5-yr parts / 1-yr labor |

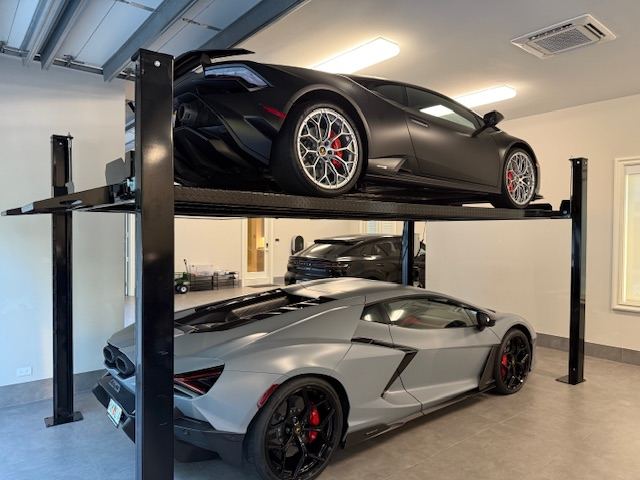

Most Compact
The compact solution for lower ceilings and standard vehicles.
When ceiling height is tight and your vehicles are standard sedans or lower SUVs, the Short Regular stacks two cars in the smallest vertical footprint in the STAK 4-post family.
| Specification | Value |
|---|---|
| Max Vehicle Height | 67.5" (5'7½") |
| Max Vehicle Width | ≤ 87" |
| Min Ceiling Required | 125" (10'5") |
| Power | 120V single phase |
| Warranty | 5-yr parts / 1-yr labor |

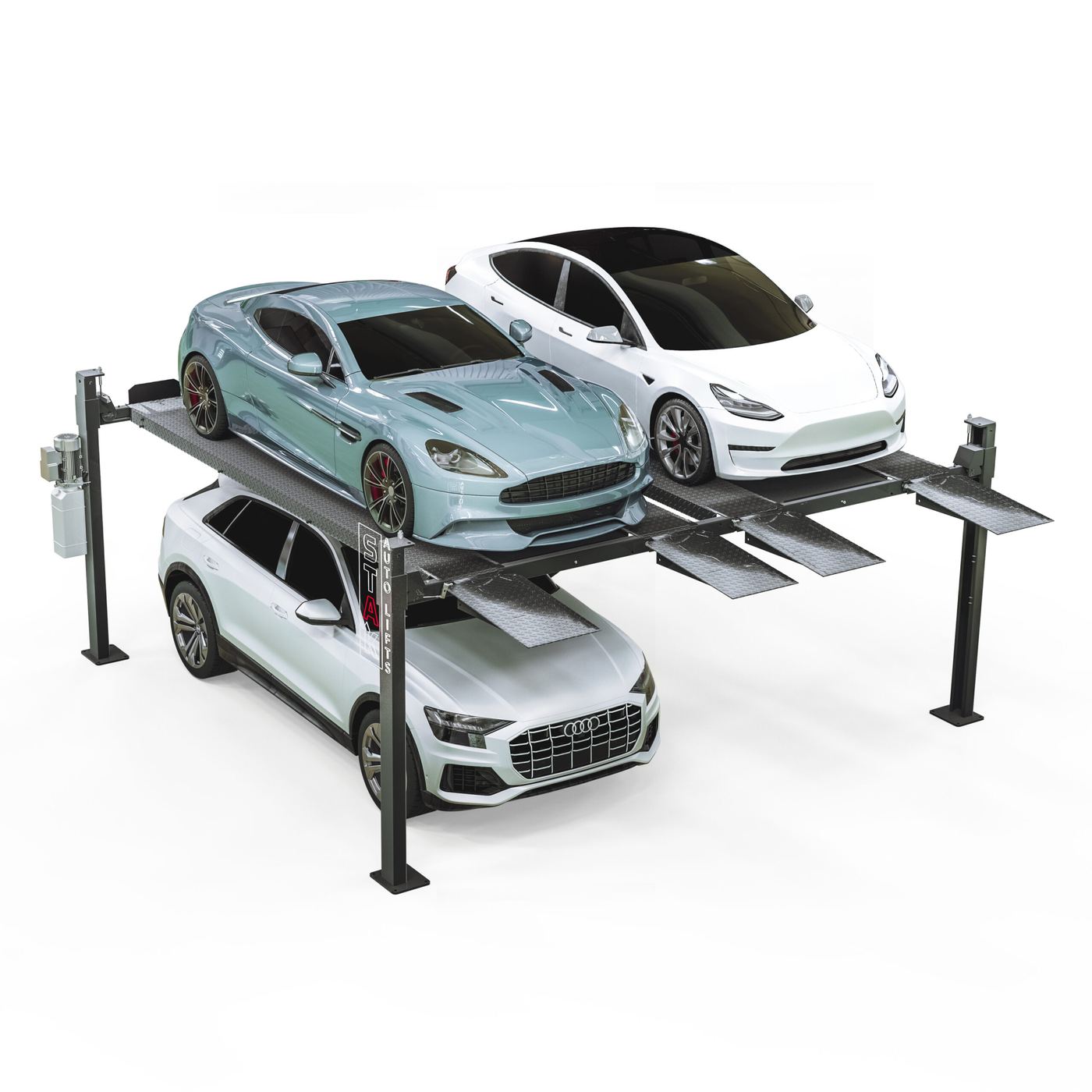

Two Cars High
Two cars side-by-side on top. Two more below.
The Double Wide parks two cars side-by-side on the elevated platform with two more stored below — four spots in a single footprint. Purpose-built for serious collectors. Requires 3-phase power.
| Specification | Value |
|---|---|
| Capacity | 8,818 lbs |
| Min Ceiling Required | 149.5" (12'5½") |
| Power | 208–240V, 3-phase |
| Configuration | 2 side-by-side on top, 2 below |
| Warranty | 5-yr parts / 1-yr labor |
We'll measure your space, check your ceiling, and match you to the right lift — free.
